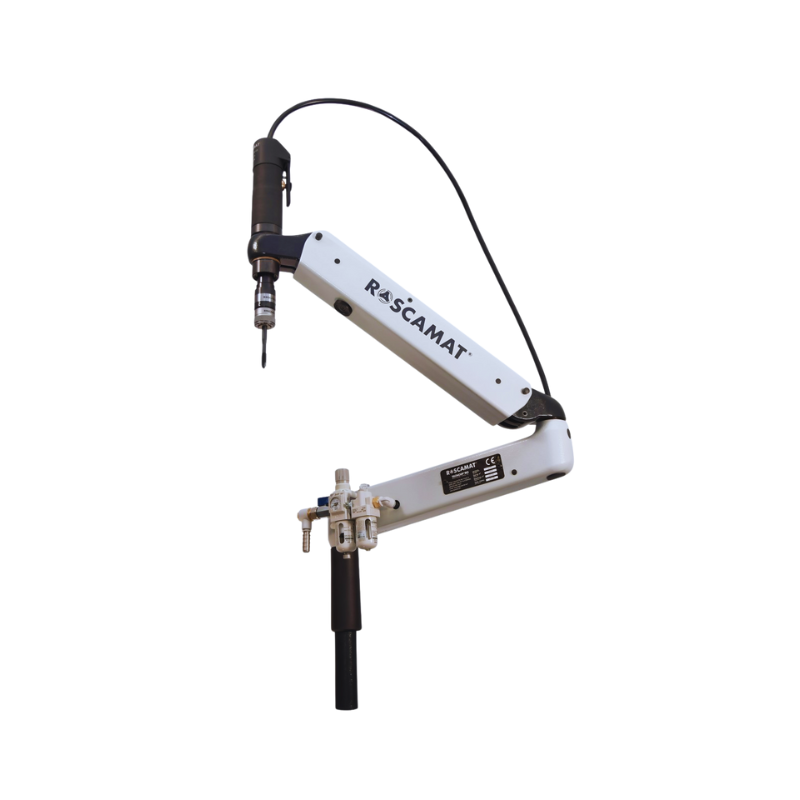

• Pneumatic tapping arm with air hose connection

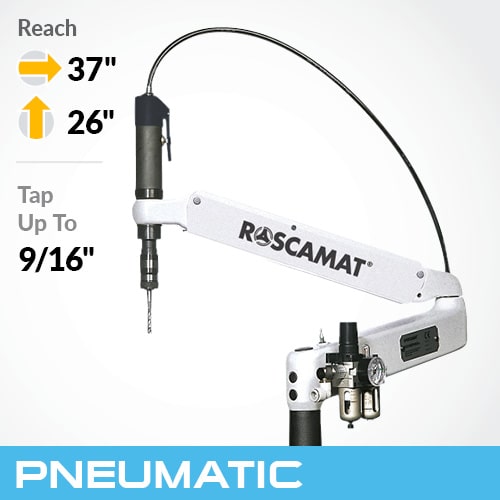

  • Compact industrial tapping arm with 37" reach, capable of tapping up to 9/16" (M14). Features an air motor and options for vertical or vertical and horizontal tapping. Constructed with heavy-duty cast aluminum.

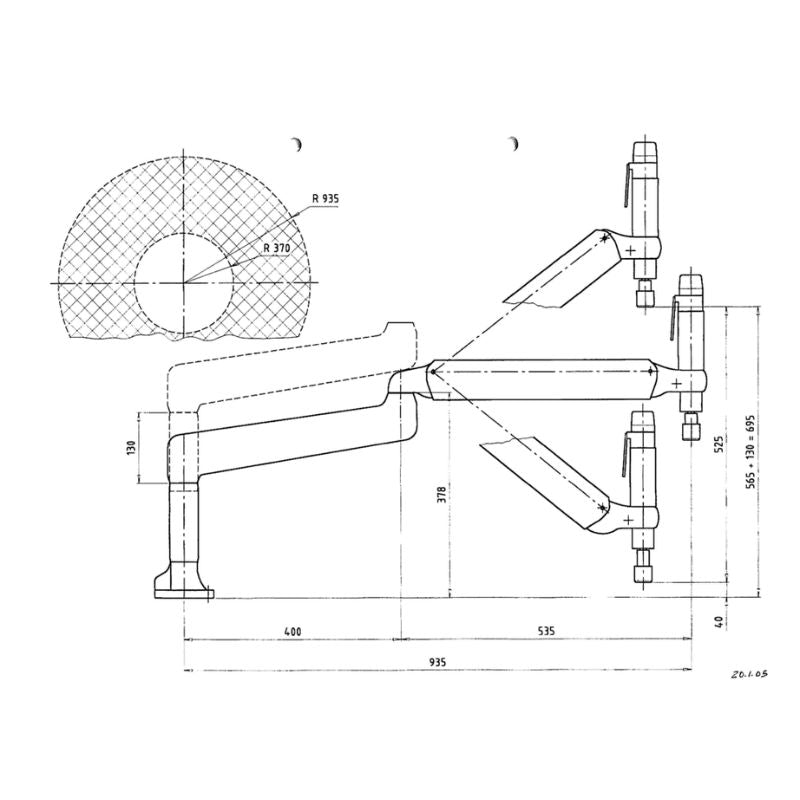

  • Digital rendering of R200 products specifications
1 4

Roscamat

Series 200

Series 200

$4,148.96
$4,148.96
Sale Sold out
Shipping calculated at checkout.
Orientation
Speed
Reach 37” Height 26”
  • Tap up to 9/16” (M14)
  • Air motor engineered for tapping
  • Heavy duty cast aluminium construction
  • Utilizes size 1 tap adaptors for quick change

Options

  • Vertical tapping
  • Vertical & horizontal tapping (VH)
  • 350 or 750 RPM single speed models



EDP Description Orientation Speed RPM Capacity (inch) Capacity (metric)
R20001F Series 200-350 Vertical 350 #0 - 9/16” M14
R20002F Series 200-750 Vertical 750 #0 - 3/8” M10
R20003F Series 200-VH-350 Vertical & Horizontal 350 #0 - 9/16” M14
R20004F Series 200-VH-750 Vertical & Horizontal 750 #0 - 3/8” M10
