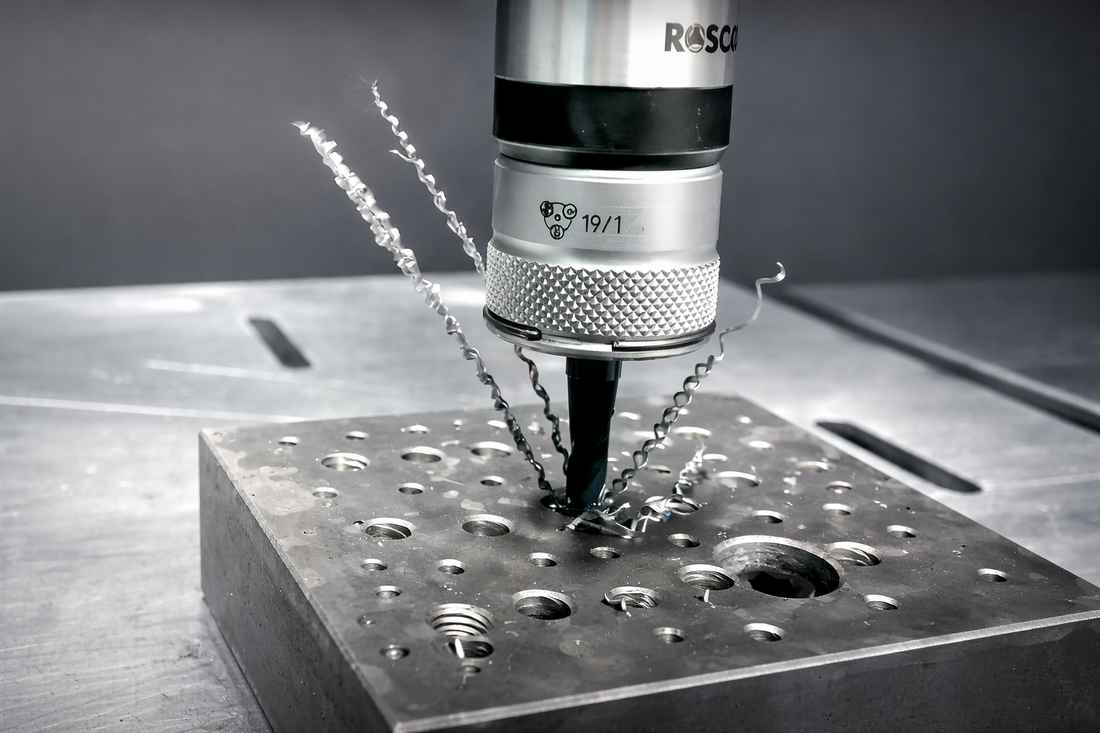

How To Control Tapping Torque
Share
Why It Matters More Than You Think
Tapping doesn’t usually fail slowly.
It fails all at once.
The cut feels fine… until it doesn’t.
Torque rises.
The tool loads up.
And suddenly, everything stops.
That moment — when torque spikes — is where most tapping problems begin.
If you can control torque, you control the process.
The Direct Answer
Tapping torque is controlled by managing alignment, feed pressure, speed, lubrication, and chip evacuation. The most effective approach combines proper setup with real-time control during the cut.
Articulated tapping systems allow operators to adjust these variables instantly, preventing torque spikes and improving thread quality.
What Is Tapping Torque?
Tapping torque is the rotational force required to cut threads into material.
It increases based on:
- Thread size
- Material hardness
- Thread depth
- Friction and chip load
At its simplest:
Torque = cutting resistance + friction + chip evacuation load
When any of these increase unexpectedly, torque rises — and that’s when problems occur.
Why Torque Control Is Critical
Most tapping failures are not caused by steady cutting force.
They are caused by sudden increases in torque.
When torque spikes:
- Taps break
- Threads become distorted
- Tools wear prematurely
- Parts are scrapped
This is especially true in:
- Steel
- Large threads
- Blind holes
- Fabricated components
If torque isn’t controlled, the process becomes unpredictable.
What Causes Torque Spikes?
Torque doesn’t increase randomly. It’s usually triggered by changes during the cut.
Misalignment
Side loading causes uneven cutting forces and rapid torque increase.
Incorrect Drill Size
Undersized holes dramatically increase cutting load.
Chip Packing
Chips trapped in the hole increase friction and resistance.
Excessive Feed Pressure
Forcing the tap adds load instead of letting it self-feed.
Inconsistent Speed
Changes in RPM affect cutting efficiency and torque stability.
Poor Lubrication
Dry cutting increases friction and heat.
Material Variation
Different hardness within the same part can change cutting conditions instantly.
Traditional Ways To Control Tapping Torque
Most shops already use several methods to manage torque:
- Correct tap selection
- Proper drill sizing
- Cutting fluids
- Controlled speeds and feeds
- Tapping heads with torque limits
These methods help — but they share one limitation:
They are fixed.
They don’t adapt when conditions change during the cut.
The Real Advantage: Controlling Torque in the Moment
Torque is not constant.
It changes throughout the tapping process.
The most effective way to control it is to respond in real time.
This is where articulated tapping systems provide a major advantage.
Instead of relying on fixed parameters, operators can:
- Ease pressure when torque rises
- Adjust speed instantly
- Reverse to clear chips
- Maintain smooth, controlled cutting
This approach prevents torque spikes before they become failures.
Learn more about how articulated systems improve control:
https://roscamatusa.com/blogs/blog/6-key-advantages-of-roscamat-tapping-arms-for-precision-machining
How Roscamat Tapping Arms Control Torque
Roscamat arms are designed to stabilize and manage the variables that influence torque.
Balanced Tool Weight
The arm supports the tapping motor and absorbs torque reaction.
This eliminates side load and keeps cutting forces consistent.
Perfect Perpendicular Alignment
The articulated structure keeps the tap square to the hole.
This prevents uneven flute loading and reduces torque buildup.
For a deeper look at alignment benefits:
https://roscamatusa.com/blogs/blog/how-to-tap-straight-holes-without-misalignment
Operator-Controlled Feed
The operator guides the tool rather than forcing it.
This allows the tap to follow its natural pitch, reducing unnecessary load.
Instant Speed Adjustment
If the material cuts harder, speed can be reduced immediately.
This keeps torque within a safe range.
Immediate Reverse For Chip Control
When chips begin to pack, the tap can be reversed instantly.
Clearing chips early prevents torque spikes and tool breakage.
Real-World Examples Of Torque Control
Structural Steel Variation
The operator feels increased resistance in a harder section and eases feed pressure to maintain a smooth cut.
Blind Hole Chip Packing
The tap is reversed briefly mid-cut to clear chips and reduce friction.
Large Thread Engagement
Speed is reduced slightly during entry on a ¾″ (M20) thread to prevent initial torque spike.
Slightly Undersized Hole
Feed pressure is reduced to avoid overloading the tap.
Fabricated Weldment
Minor distortion causes resistance, so the operator adjusts speed to keep torque stable.
Deep Threading Operation
Periodic reversal clears chips and keeps torque consistent throughout the cut.
When Torque Control Matters Most
Torque control becomes critical in situations like:
- Large threads (½″ / M12 and larger)
- Blind holes
- Stainless or high-strength steel
- Fabricated or welded parts
- Repair and maintenance work
- Deep threads
These are also the applications where articulated tapping arms provide the greatest benefit.
Explore available systems here:
https://roscamatusa.com/collections/tapping-arms
The Bottom Line
Tapping torque isn’t something you set once.
It’s something you manage throughout the entire cut.
When torque is controlled:
✔ Threads are cleaner
✔ Taps last longer
✔ Scrap is reduced
✔ The process becomes predictable
Roscamat tapping arms make this possible by giving operators the ability to adjust in real time, preventing torque spikes before they become problems.
Frequently Asked Questions
What causes high tapping torque?
High tapping torque is typically caused by material hardness, incorrect hole size, misalignment, chip buildup, or poor lubrication.
How can tapping torque be reduced?
Torque can be reduced by using proper drill size, lubrication, alignment, and controlled feed and speed during tapping.
Why do taps break from torque?
Taps break when torque exceeds the tool’s strength, usually due to sudden spikes rather than steady load.
Can tapping arms control torque?
Yes. Articulated tapping arms allow operators to adjust speed, pressure, and direction in real time, helping prevent torque spikes.
What is the biggest advantage of real-time torque control?
It allows the operator to respond immediately to changing conditions, making tapping safer, more consistent, and more reliable.
