How to Tap Straight Holes Without Misalignment



Tapping straight, accurate threads sounds simple — until the tap starts walking, the thread angle shifts, torque spikes, and the part is suddenly scrap.
Misalignment is the root cause behind broken taps, oversized threads, poor fit, and inconsistent quality in manual and drill-press tapping.

Here’s how to eliminate it — permanently.

The Direct Answer

You tap straight holes by controlling alignment, perpendicularity, feed consistency, and torque reaction at the same time.

The most reliable method is using a self-aligning articulated tapping arm with axial float and controlled speed, which keeps the tap perfectly square to the hole throughout the entire thread.

Why Taps Go in Crooked in the First Place

Misalignment is rarely operator error — it’s a mechanical control problem.

The most common causes:

  • Handheld tapping (no alignment guidance)
  • Drill press quill play
  • Inconsistent feed pressure
  • Poor fixture access on large parts
  • Tap pulling itself off-axis
  • Angular entry into the hole
  • Long or flexible taps amplifying runout

Once the tap enters at an angle, the threads are forced to follow that path.
From that moment forward:

  • Torque increases
  • Cutting becomes uneven
  • The tap deflects
  • Breakage risk spikes

And the thread is no longer true.

The Physics: Why Alignment Matters

A tap is a self-feeding cutting tool.

If the tool axis and hole axis are not perfectly aligned:

  • One side of the tap cuts more than the other
  • Load becomes uneven across the flutes
  • Friction rises
  • The tap tries to correct itself — and snaps

Straight threads require:

✅ Perfect perpendicular entry
✅ Zero side loading
✅ Controlled axial movement
✅ Consistent RPM

You cannot “muscle” this into accuracy by hand.

Proven Methods to Tap Straight Holes

1) Start With a True, Accurate Hole

Your thread will only be as straight as the hole.

  • Spot drill to prevent walking
  • Use rigid drilling setup
  • Maintain correct drill size
  • Keep runout under control

If the hole is crooked, the tap will follow it.

2) Control Perpendicular Entry

The tap must enter perfectly square to the surface.

This is where most manual methods fail.

Best solutions:

  • Guided tapping head
  • Rigid spindle with floating holder
  • Articulated tapping arm with self-alignment

An articulated arm naturally:

  • Centers over the hole
  • Holds the tap perpendicular
  • Removes side load

No operator compensation required.

3) Let the Tap Feed Itself

Forcing the feed causes angular deflection.

Correct tapping:

  • Apply light forward pressure only
  • Allow the thread pitch to pull the tap
  • Maintain constant speed

Pushing too hard = bent tap path.

4) Use Controlled Speed and Torque

Inconsistent RPM creates:

  • Variable cutting forces
  • Tool deflection
  • Misalignment under load

Stable speed keeps the tap tracking straight.

5) Eliminate Side Load During the Stroke

Side pressure from the operator is one of the biggest hidden causes of crooked threads.

A properly balanced tapping arm:

  • Carries the tool weight
  • Moves only in the Z-axis during tapping
  • Prevents lateral force

The operator guides — the machine maintains alignment.

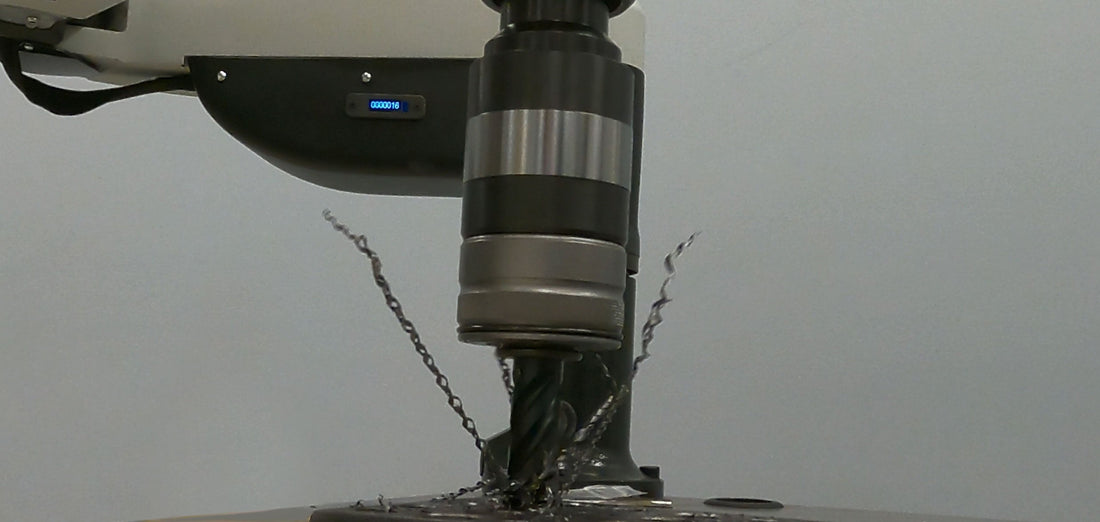

The Most Reliable Modern Solution

Self-Aligning Articulated Tapping Arms

They solve all misalignment variables at once:

  • Automatic perpendicular positioning
  • Zero tool weight on the thread
  • Controlled axial float
  • Constant speed
  • Instant torque reversal
  • Full operator control without forcing the tool

This is why they are the standard for accurate tapping on:

  • Large parts
  • Weldments
  • Structural components
  • Repair work
  • Short-run production
  • CNC support operations

Real-World Impact on the Shop Floor

When alignment is controlled:

  • Broken taps drop dramatically
  • Threads gauge correctly the first time
  • Operator fatigue decreases
  • Scrap is reduced
  • Cycle time becomes predictable
  • Large parts become easy to tap

Most importantly:

You remove the stress from the operation.

Tapping becomes repeatable instead of risky.

Common Signs Your Current Process Has Misalignment

  • Taps breaking near entry
  • Tight on one side of the thread
  • Oversized or bell-mouthed threads
  • Squealing during cutting
  • Visible tap deflection
  • High torque at shallow depth

These are alignment problems — not tap problems.

Best Practices for Perfectly Straight Threads Every Time

✔ Use a rigid, accurate drilled hole
✔ Keep the tap perfectly perpendicular
✔ Let the tap self-feed
✔ Maintain constant RPM
✔ Remove side load from the tool
✔ Use a self-aligning tapping system for repeatability

The Bottom Line

Straight threads are not about operator skill —
they are about mechanical control of the tap axis.

When alignment is built into the process:

Tapping becomes:

  • Safer
  • Faster
  • More accurate
  • Fully predictable

And broken taps stop being part of the job.
